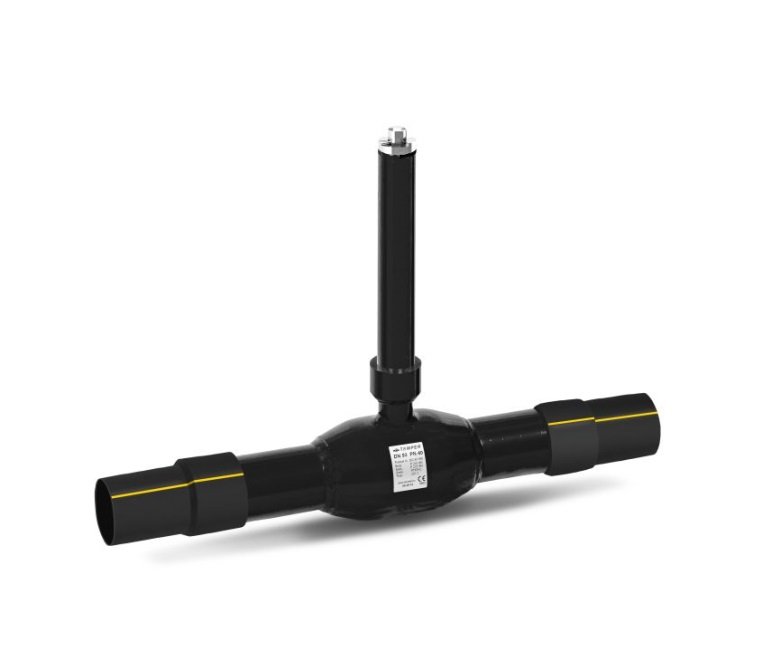

STANDARD BORE / FULL BORE BALL VALVE 582/592 with FITTINGS FOR POLYETHYLENE WELDED CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : + 200

Мin. temperature (Т) °С. : - 60

Valve gate tightness rating: : Class "A"

Service life : At least 25 years

Warranty period : 3 years or 10 000 cycles

Body materials : 1.1151 / P235GH / 1,4541

Characteristics modification

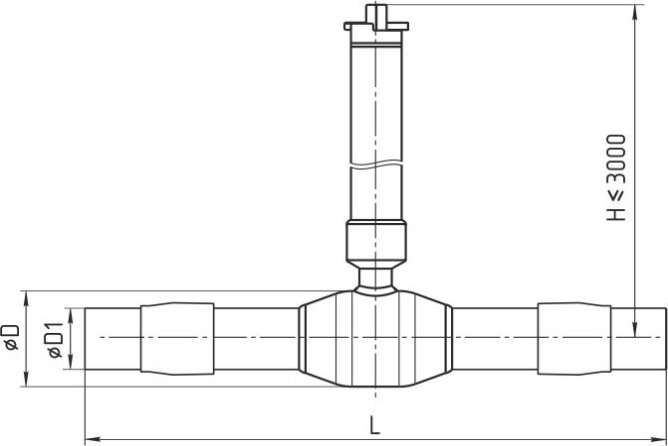

DN	PN	Product number	L	D	D1	H
80	25	59220080	1570	89	59	onrequest

25	40	58220025	1410	48	32	onrequest
32	40	58220032	1440	57	38	onrequest
40	40	58220040	1380	76	48	onrequest
50	40	58220050	1440	89	57	onrequest
65	40	58220065	1520	108	76	onrequest
80	25	48220080	1570	133	89	onrequest
100	25	58220100	1630	159	108	onrequest
125	25	58220125	1890	180	133	onrequest
150	25	58220150	1920	219	159	onrequest
200	25	58220200	1950	273	219	onrequest
250	25	58220250	2230	351	273	onrequest
300	16	58220300	2750	426	323,9	onrequest
500	16	58220500	3200	630	530	onrequest
25	40	59220025	1410	57	32	onrequest
32	40	59220032	1440	76	38	onrequest
40	40	59220040	1380	89	48	onrequest
50	40	59220050	1440	108	57	onrequest
65	25	59220065	1520	133	76	onrequest
100	25	59220100	1630	180	108	onrequest
125	25	59220125	1890	180	133	onrequest
150	25	59220150	1920	219	159	onrequest
200	25	59220200	1950	273	219	onrequest
250	16	59220250	2230	426	273	onrequest
300	16	59220300	2750	530	323,9	onrequest
400	16	59220400	3000	630	406,4	onrequest
