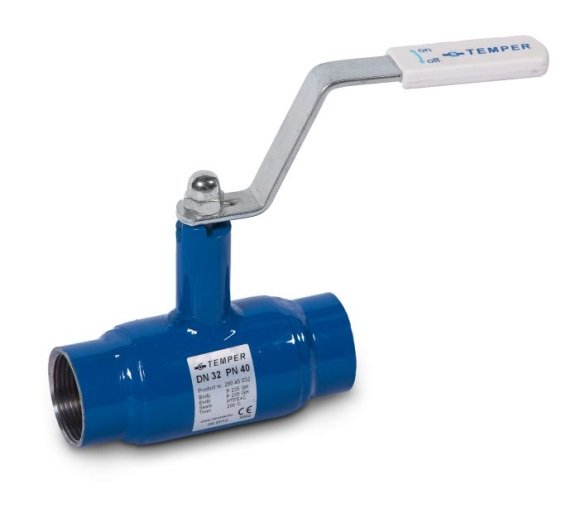

FULL BORE Ball valve 290 FEMALE THREADS CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : 200 °C

Мin. temperature (Т) °С. : - 60 °C

Service life : 25 years and over

Valve gate tightness rating: : "A" class

Warranty period : 3 years

Body materials : 1.1151 / P235GH / 1,4541

Characteristics modification

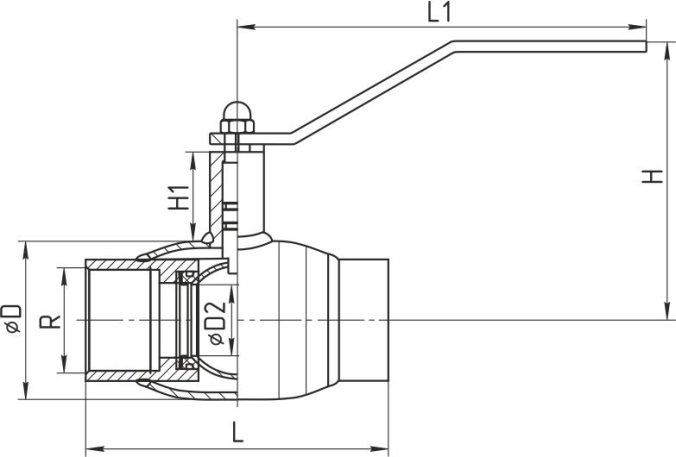

DN	PN	Product number	L	L1	D	D2	H	H1	R
15	40	29020015	135	148	42	15	135	50	1/2
20	40	29020020	135	148	48	18	138	50	3/4
25	40	29020025	135	148	57	24	142	50	1
32	40	29020032	155	235	76	30	145	44	1 1/4
40	40	29020040	170	235	89	40	154	46	1 1/2
50	40	29020050	190	235	108	50	159	42	2
65	25	29020065	200	283	133	63	200	66	2 1/2
80	25	29020080	240	283	159	75	200	66	3
