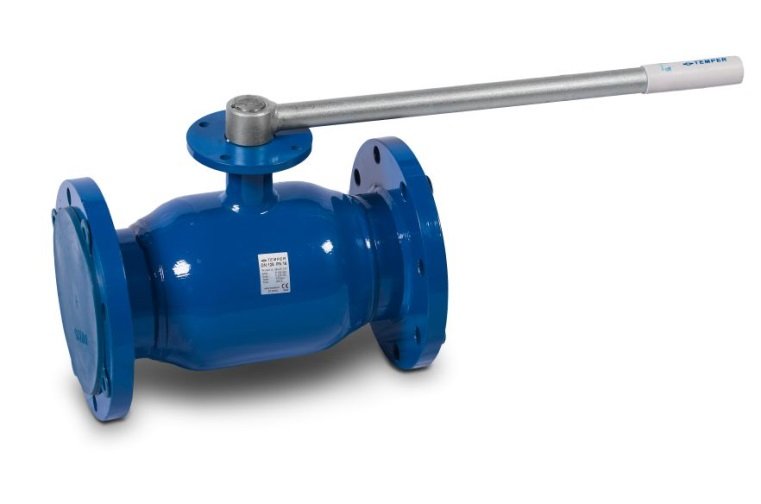

FULL BORE BALL VALVE 293 (with ISO flange) FLANGED CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : + 200

Мin. temperature (Т) °С. : - 60

Valve gate tightness rating: : Class "A"

Service life : At least 25 years

Warranty period : 3 years or 10 000 cycles

Body materials : 1.1151 / P235GH / 1,4541

Characteristics modification

DN	PN	Product number	L	L1	D	D1	D2	D3	H	H1	n of holes
100	16	29320100	350	525	180	180	100	18	195	51	8
125	16	29320125	380	525	180	210	125	22	210	51	8
150	16	29320150	410	525	219	240	148	22	225	58	12
200	16	29320200	530	625	273	295	200	26	270	55	12
250	16	29320250	750	-	426	355	240	26	329	98	12
300	16	29320300	750	-	530	400	300	26	373	98	12
400	16	29320400	990	-	630	515	390	30	435	98	16
