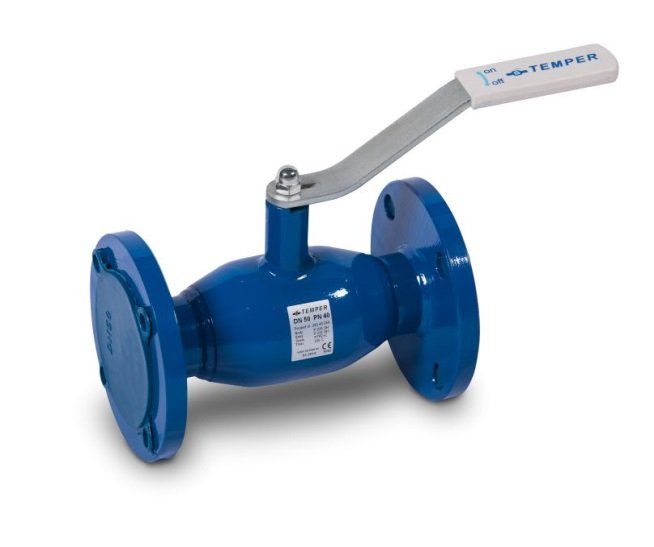

FULL BORE BALL VALVE 293 FLANGED CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : + 200

Мin. temperature (Т) °С. : - 60

Valve gate tightness rating: : Class "A"

Service life : At least 25 years

Warranty period : 3 years or 10 000 cycles

Body materials : 1.1151 / P235GH / 1,4541

Characteristics modification

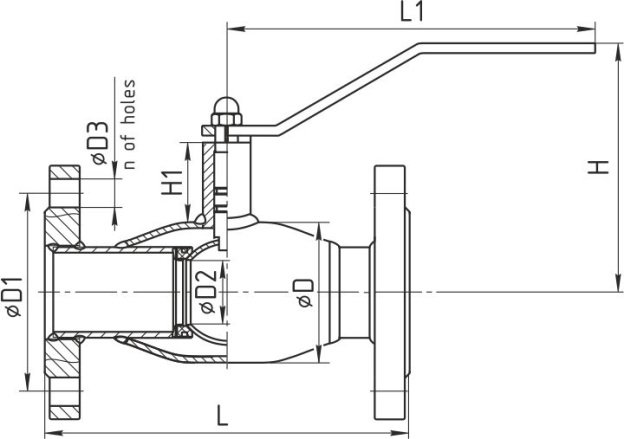

DN	PN	Product number	L	L1	D	D1	D2	D3	H	H1	n of holes
15	40	29320015	130	148	38	65	15	14	132	49	4
20	40	29320020	150	148	42	75	18	14	135	50	4
25	40	29320025	160	148	48	85	24	14	138	50	4
32	40	29320032	180	148	57	100	30	18	142	50	4
40	40	29320040	200	235	76	110	40	18	145	44	4
50	40	29320050	250	235	89	125	149	18	154	46	4
65	16	29320065	270	235	108	145	63	18	159	42	4
80	16	29320080	290	283	133	160	175	18	200	66	8
