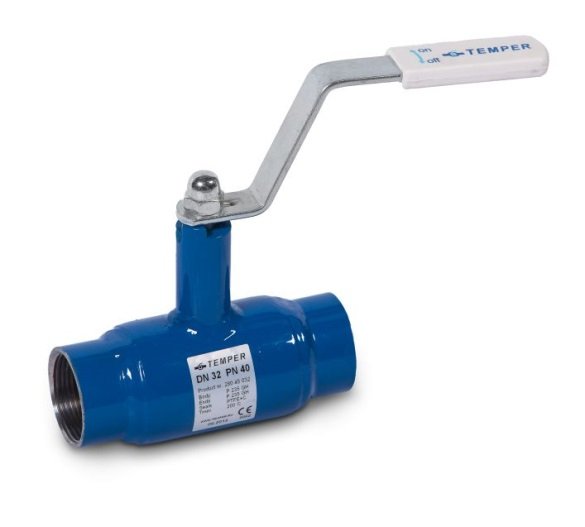

STANDARD BORE Ball valve 280 FEMALE THREADS CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : 200 °С

Valve gate tightness rating: : "A" class

Мin. temperature (Т) °С. : - 60 °C

Service life : 25 years and over

Warranty period : 3 years

Body materials : 1.1151 / P235GH / 1,4541

Characteristics modification

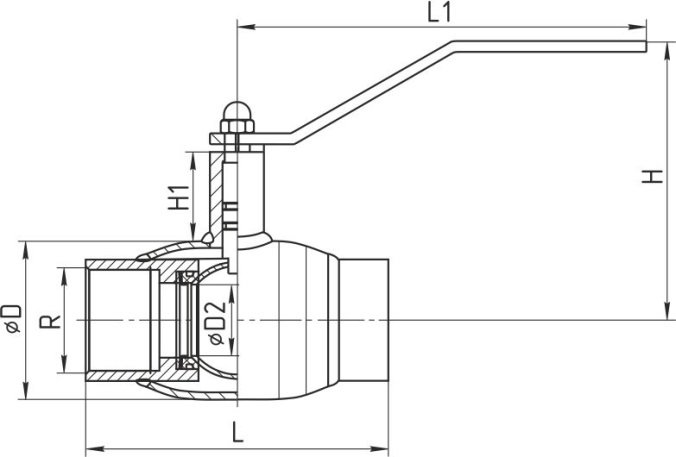

DN	PN	Product number	L	L1	D	D2	H	H1	R
15	40	28020015	135	148	38	10	132	49	1/2
20	40	28020020	135	148	42	15	135	50	3/4
25	40	28020025	135	148	48	18	138	50	1
32	40	28020032	135	148	57	24	138	50	1 1/4
40	40	28020040	155	235	76	30	145	44	1 1/2
50	40	28020050	170	235	89	4540	154	46	2
65	25	28020065	190	235	108	45	162	42	2 1/2
80	25	28020080	200	283	133	63	200	66	3
100	25	28020100	240	283	159	75	209	63	4
