BALANCING BALL VALVE 683/693 FLANGED CONNECTION

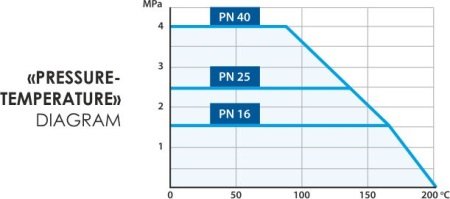

Working medium

Temper balancing ball valves are designed for regulation (balancing) of the working fluid flow in heating, cold supply and ventilation systems. The ball has a special orifice and the valve is equipped with a scale of values. Regulation is carried out by turning the handle with the pointer. The selected position of the handle is fixed with a bolt and a nut-butterfly.

Two types of regulating ball valves:

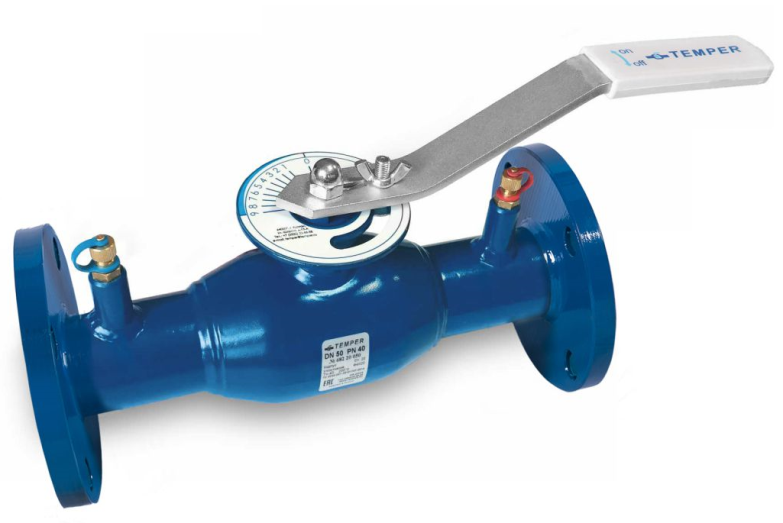

1)With measuring nipples (see the picture and the drawing on the page). All the measurements could be

measured by a flow meter.

2) Without measuring nipples.Flow adjustment is made only by a handle with index.

Characteristics modification

DN	PN	Product number	L	L1	D1	D3	L2	H	H1	H2	n of holes
20	40	68320020	150	50	65	14	175	135	74	45	4
25	40	68320025	160	50	75	14	175	138	76	45	4
32	40	68320032	180	55	85	14	175	140	79	45	4
40	40	68320040	200	65	100	18	250	148	84	43	4
50	40	68320050	230	70	110	18	250	148	88	40	4
65	25	68320065	270	85	125	18	250	152	98	36	4
80	25	68320080	280	95	145	18	300	186	138	49	8
100	25	68320100	300	105	160	18	300	194	148	43	8
125	25	68320125	350	115	210	18	-	-	158	51	8
150	25	68320150	380	125	240	22	-	-	168	58	8
