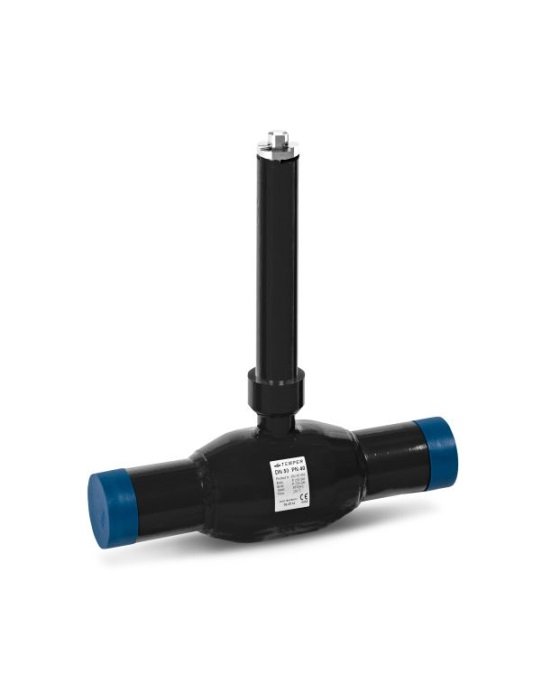

STANDARD BORE / FULL BORE BALL VALVE 582/592 with extended stem WELDED CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : + 200

Мin. temperature (Т) °С. : - 60

Valve gate tightness rating: : Class "A"

Service life : At least 25 years

Warranty period : 3 years or 10 000 cycles

Body materials : 1.1151 / P235GH / 1,4541

Characteristics modification

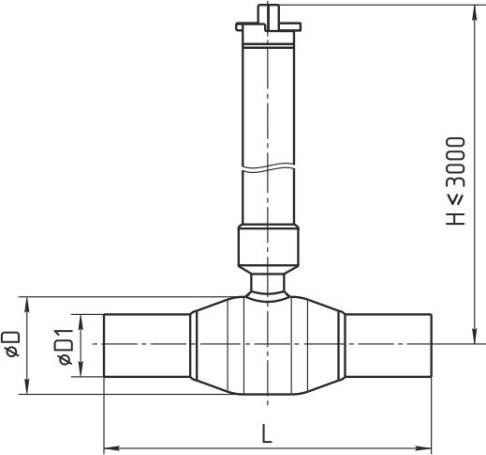

DN	PN	Product number	L	D	D1	H
250	25	48220250	510	351	273	onrequest
25	40	58220025	230	48	32	onrequest
32	40	58220032	260	57	38	onrequest
40	40	58220040	260	76	48	onrequest
50	40	58220050	300	89	57	onrequest
65	40	58220065	360	108	76	onrequest
80	25	58220080	370	133	89	onrequest
100	25	58220100	390	159	108	onrequest
125	25	58220125	330	180	133	onrequest
150	25	58220150	360	219	159	onrequest
200	25	58220200	430	273	219	onrequest
250	25	58220250	510	351	273	onrequest
300	16	58220300	730	426	323,9	onrequest
400	16	58220400	860	530	406,4	onrequest
500	16	58220500	970	630	530	onrequest
25	40	59220025	230	57	32	onrequest
32	40	59220032	260	76	38	onrequest
40	40	59220040	260	89	48	onrequest
50	40	59220050	300	108	57	onrequest
65	25	59220065	360	133	76	onrequest
80	25	59220080	370	159	89	onrequest
100	25	59220100	330	180	108	onrequest
125	40	59220125	360	180	133	onrequest
150	25	59220150	390	219	159	onrequest
200	25	59220200	510	273	219	onrequest
250	16	59220250	730	426	273	onrequest
300	16	59220300	730	530	323,9	onrequest
400	16	59220400	970	630	406,4	onrequest
