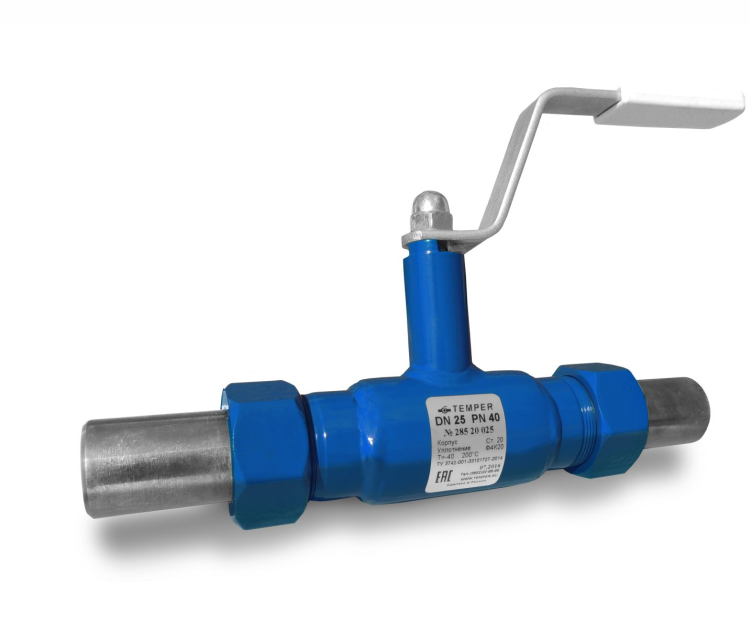

STANDARD BORE BALL VALVE 285 CHOKE-NIPPLE CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : + 200

Мin. temperature (Т) °С. : - 60

Valve gate tightness rating: : Class "A"

Service life : At least 25 years

Warranty period : 3 years or 10 000 cycles

Body materials : 1.1151 / P235GH / 1,4541
