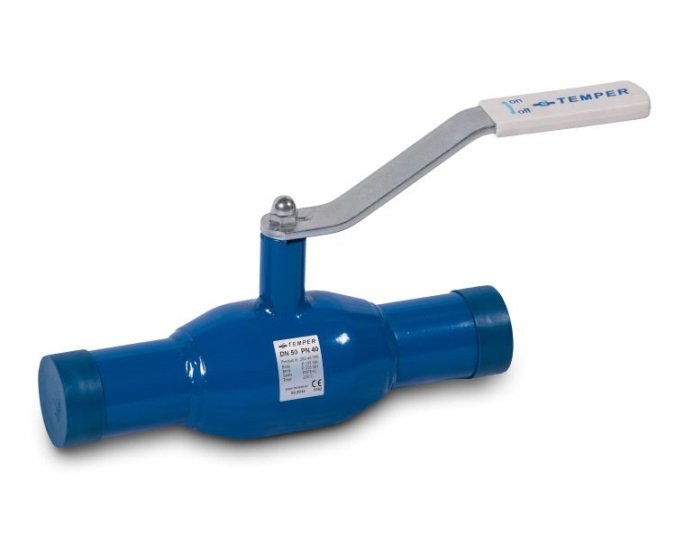

FULL BORE BALL VALVE 292 WELDED CONNECTION

Working medium

District heating networks, petroleum products, combustible and lubricating materials, other fluids free from abrasive contaminants. Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards valve materials.

Characteristics

Мах. temperature (Т) °С. : + 200

Мin. temperature (Т) °С. : - 60

Valve gate tightness rating: : Class "A"

Service life : At least 25 years

Warranty period : 3 years or 10 000 cycles

Body materials : 1.1151 / P235GH / 1,4541

Characteristics modification

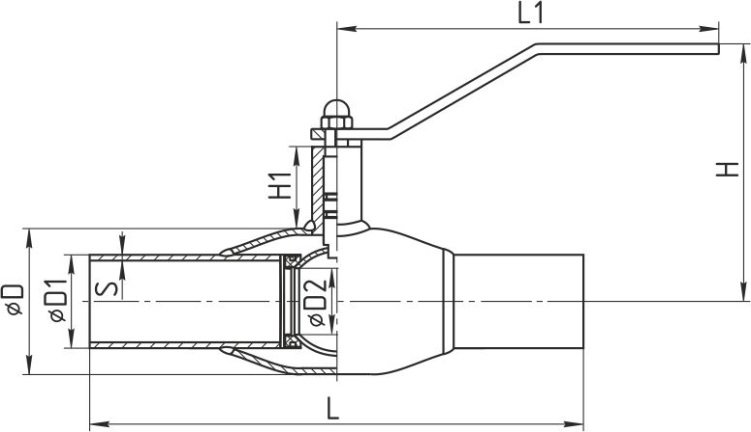

DN	PN	Product number	L	L1	D	D1	D2	H	H1	S
15	40	29220015	230	148	42	21,3	15	135	50	3
20	40	29220040	230	148	48	26,9	18	138	50	3,5
25	40	29220025	260	148	57	33,7	24	142	50	3,5
32	40	29220032	260	235	76	42,4	30	145	144	4
40	40	29220040	300	235	89	48,3	40	154	46	4
50	40	29220050	300	235	108	60,3	49	159	42	4
65	25	29220065	300	283	133	76,1	63	200	66	4
80	25	29220080	325	283	159	88,9	75	209	63	5
